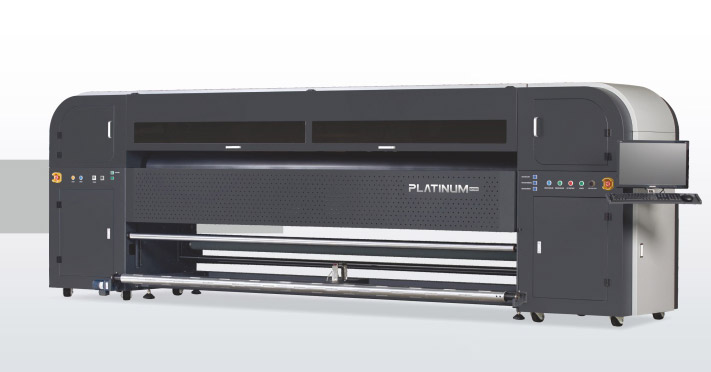

Starlink series P3 Solventroll to roll printer
Highlight Features:
| model |
PCT 3204 /PCT 3208 |
||
|
Head model |
KM1024i |
||
|
Printhead Quantity |
4 - 14 |
||
|
Drop Volume |
13 Pl. |
||
|
Color Scale |
CMYK |
||
|
INK Type |
Ecosolvent |
||
|
Drying System |
UV-LED Curing |
||
|
Print Width |
3200mm |
||
|
Print Resolution |
2880 dpi |
||
|
Print Speed Up to |
290㎡/h |
||
|
RIP Software |
Photo Print |
||
|
Hardware |
- |
||
|
Power Requirement |
230v (+/-) 10% / 22A / 50HZ |
||
|
Machine Size 2512 |
1150mm x5400mm x 1650mm |
||
|
Machine Weight |
1450Kg |
Highlight Features:
1, the latest industrial design, beautiful atmosphere, in line with the trend;
2, THK mute guide rail, anti-deformation beam;
3, dense type wide pressure wheel;
4, integrated computer console;
5, high-power infrared drying combined with fan drying;
6, feeding linkage function, more stable and high-speed feeding;
7, flexible cloth combination, task selection, double roll cloth;
8, the use of 1024iMH nozzle, wide-format solvent best nozzle matching program.
