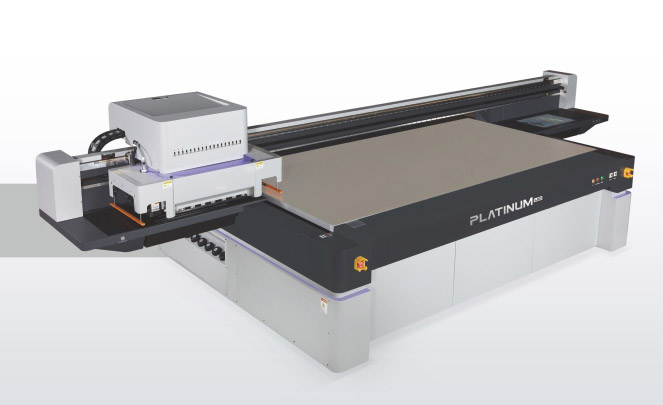

Galaxyseries F2/F3-XL Flatbed Printer
Technical Specifications
|
Model |
KC2512 / KC3020/KC2512-RA/KC3020-RA |
||
|
Head Model |
Km1024 / KM1024i/RICOH GEN5 |
||
|
Printhead Quantity |
18 (Max.) |
||
|
Drop Volume |
13 - 14 Pl. / 7 Pl. |
||
|
Color Scale |
CMYK + White + Varnish + Lc + Lm |
||
|
INK Type |
UV-LED |
||
|
Drying System |
UV Curing- LED Curing |
||
|
Flat-Bed Size |
2500mm x 1250mm / 3050mm x 2050mm |
||
|
Print Height |
100mm |
||
|
Print Resolution |
2880 dpi / 1200 dpi |
||
|
Print Speed Up to |
200㎡/h |
||
|
RIP Software |
Photo Print |
||
|
Hardware |
液晶顯示器/LCD Monitor |
||
|
Power Requirement |
230v (+/-) 10% / 40A / 50HZ / 60HZ |
||
|
Machine Size 2512 |
2200mm x 5220mm x 1530mm |
||
|
Machine Size 3020 |
3000mm x 5800mm x 1530mm |
||
|
Machine Weight |
1370-2500kg. |
Highlight Features:
1. The new platinum version design has a concise and elegant appearance and incorporates ergonomic design.2, the new rack and drive design, to provide a more precise, more stable main structure '
3, the new honeycomb platform structure design, more adjustment points, to provide a higher flatness of the printing platform;
4, new flexible car collision avoidance system, the maximum degree of protection nozzles, UV lamps and other valuable components;
5, the new handheld control handle, support 3-axis motion control, adsorption partition control, media positioning control and other operations, effectively improve the convenience of operation;
6, the new design of gas and ink route + intelligent dual negative pressure system to provide a more stable supply of ink;
7. Integrate the detachable design of the adsorption fan assembly, the customer is convenient and simple to use;
8, independent flash spray station design, so that the nozzle always maintain the best working condition.
