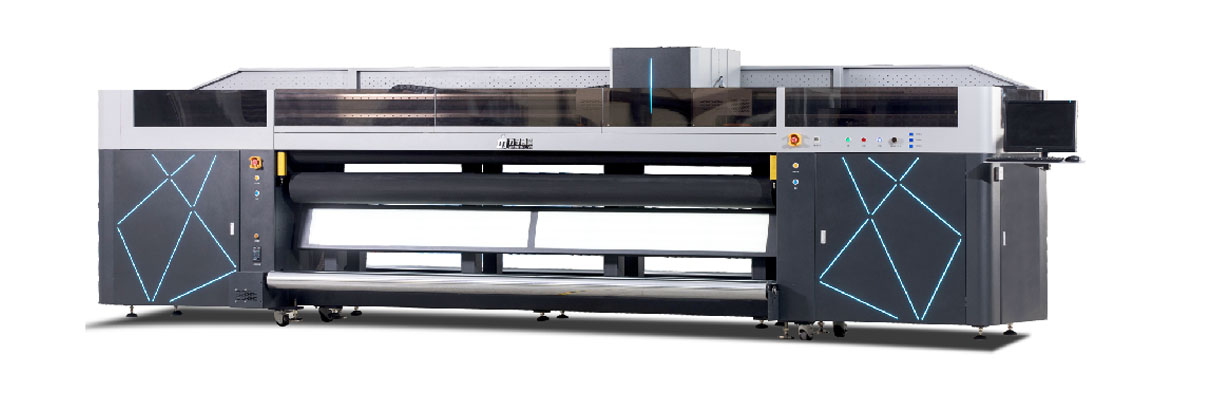

Galaxy Series R3 &R5 UVRoll Inkjet Printer
Highlight Features:
| model |
FS33-UV-LED |
||
|
Print Technology |
Piezo continuous drop-on demand(DOD) |
||
|
Head Model |
Konica 1024i 6pl / Kyocera KJ |
||
|
Print Head Control |
Use software to adjust the temperature and voltage of the print head
|
||
|
Print head Configuration |
KCMYx2/KCMYx3/KCMYLcLmx2/KCMY/KCMYx2/ |
||
|
Maximum Printing Size |
3.3 m |
||
|
Print Resolution |
2880 dpi |
||
|
Print Speed Up to |
120㎡/h |
||
|
INK Type |
UV Ink |
||
|
Color Profile |
K C M Y Lc Lm (可選/optional) / K C M Y Lc Lm W（可選/optional） |
||
|
Ink Supply System |
Automatic continuous ink supply with vacuum negative pressure |
||
|
Drying System |
UV lamp solidification |
||
|
Package Size |
6750x1400x1800 mm |
||
|
Machine Size |
6412x1650x2100 mm | ||
|
Machine Weight |
2300kg. | ||
|
Printing Interface |
PCIE System |
||
|
Power Requirement |
210V-240V 32A 50HZ x2 |
||
|
Environmental Requirements |
Temperature 15 ℃ ~ 30 ℃ Relative humidity 40% ~ 80% |
||
|
RIP Software |
Photo print/Caldera |
Highlight Features:
Design
Blockbuster new product in 2019, with cool open type ice blue design and powerful print head configuration, full of mysterious sense of
technology, opening a new future of high-speed UV!
Power:
1,Three-staggered Konica1024I ultra-wide configuration, which can easily achieve high-speed UV printing of 120m2 per hour!
2,With double staggered Kyocera ultra-clear configuration, UV roll media printing accuracy can be improved to a new realm!
Reliability:
1,With 4 rubber rollers of large diameter of 200mm, all kinds of soft and hard materials can be printed smoothly without deviation which can protect the painted picture and is suitable for mass high-speed printing.
2, The whole machine adopts integral welding structure, with super rigidity, and without rack deformation!
Functionality:
1, Printing mode for soft and hard materials can be one-key switched, adapting to a variety of UV coiled materials, which can meet various needs of customers!
2, Water cooling platform of independent control, so do not worry about the material deformation of heat reactive materials due to the heating during UV lamp or ink solidification.
3,Frequency conversion fan of printing platform adjusts the suction, which is suitable for different needs of various UV roll media!
4,Configuration of safety light curtain can effectively avoid accidental injuries. And the machine will automatically continue to print after eliminating potential safety hazards!
