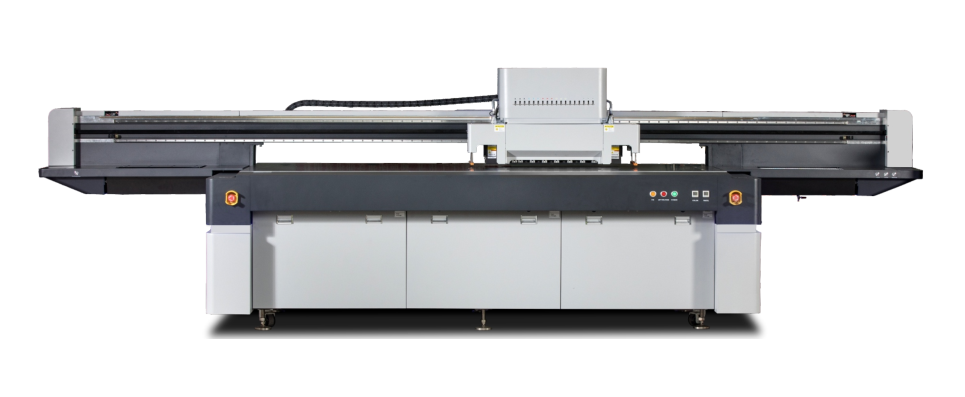

Galaxyseries F2 &F3-E Flatbed Printer
|
機器型號/Model |
KCL2512/KCL3020 |
|
打印技術/Print Technology |
Piezo continuous drop-on demand(DOD) |
|
噴頭類型/Head Model |
RICOH GEN5/RICOH GEN6 |
|
噴頭個數/Printhead Quantity |
2-10 |
|
墨滴大小/Drop Volume |
7 Pl. /5 Pl. |
|
顏色配置/Color options |
CMYKLcLm + White + Varnish |
|
供墨方式/Ink Supply System
|
采用真空負壓自動連續供墨 |
|
墨水類型/INK Type |
UV型墨水 / Environmental friendly UV/LED curable ink |
|
烘干裝置/Drying System |
LED UV燈固化 / LED UV lamp Curing |
|
平板尺寸/Flat-Bed Size |
2500mm x 1250mm / 3050mm x 2050mm |
|
打印厚度/Print Height |
100mm/200mm(可選 / optional ） |
|
打印分辨率/Print Resolution |
600*2400 dpi |
|
最快打印模式及效率/Print Mode and Efficiency |
300*900 3pass 80㎡/h?（草圖模式/Draft Mode ） |
|
介質吸附/Dielectric adsorption |
臺面真空吸附/Desktop Vacuum Adsorption |
|
RIP軟件/RIP Software |
Photo print 19 /Print Factory |
|
硬件/Hardware
|
X向驅動 伺服電機/ 直線電機（可選） |
|
電源要求/Power Requirement |
主機 220v (+/-) 10% / 50A / 50HZ |
|
2512機器尺寸/Machine Size 2512 |
2200mm x 5220mm x 1530mm |
|
3020機器尺寸/Machine Size 3020 |
3000mm x 5800mm x 1530mm |
|
機器重量/Machine Weight |
1370-2500kg. |
|
環境要求/Environmental Requirements |
溫度/Temperature 15 ℃ ~ 30 ℃ 相對濕度/Relative humidity 40% ~ 80% |
功能特點/ Highlight Features:
機械優勢 Mechanical advantages
1、The machine frame is integrally welded and aged for durability;
2、The honeycomb aluminum plate is provided with decimillimetre precision and high flatness;
3、Double mute rail in X direction, without noise in printing!
4、The Y direction is driven by classic dual guide guides,dual lead screws, and dual AC servo motors, providing high printing stability.
軟件優勢 Software advantages:
1.Multiple software control modes to meet different quality requirements;
2.Supporting multiple print mode extensions to meet different applications.
固化組件 Solidification component:
The high-quality water-cooled LED system allows materials not to deform with low power consumption and more environmental protection.
貼心設計 Considerate?design:
1.High-quality static electricity eliminator improves printing quality;
2.Automatic media height measurement facilitates printing of various thickness materials;
3.The positioning pin function facilitates repeated printing of batch materials;
4.The equipped computer stand adsorption control system can print materials of various sizes;
5.The carriage collision avoidance system can maximize the protection of the print head, UV lamp, and other valuable components.

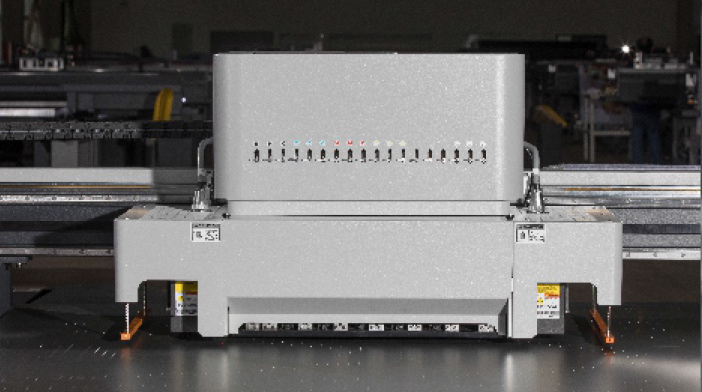

噴頭配置 Print head configuration:
1.High precision and high cost-effective Ricoh Gen5 and Gen6 print heads (7pl, 5pl gray level);
2.1280 nozzles; firing frequency: 4-level grayscale, with the max. of 20/50KHZ.
