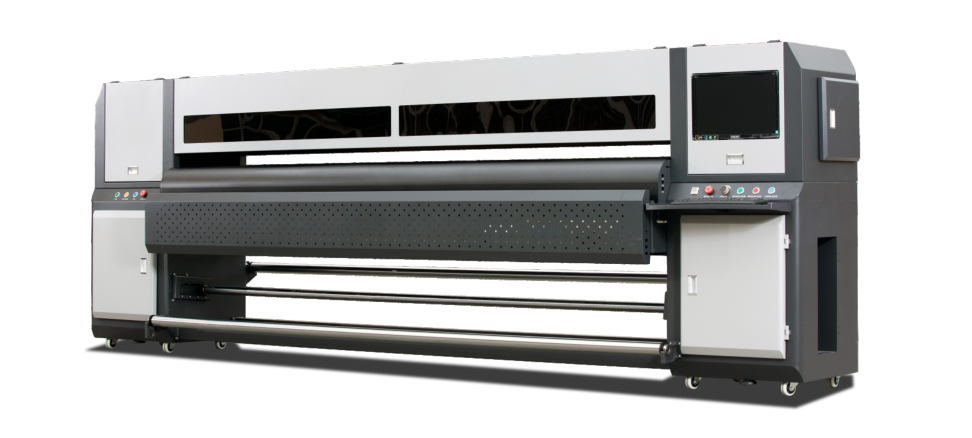

Maxima PZG series high speed inkjet printer
機器型號/Model
PZG3204/PZG3208 PZG3204-KY-1/PZG3208-KY-1
噴頭類型/Head Model
Km512i 6988H
噴頭數量/Printhead Quantity
4-8
墨滴大小/Drop Volume
30 Pl. 13 Pl.
顏色比例/Color Scale
CMYK
墨水類型/INK Type
環保墨水 / Ecosolvent

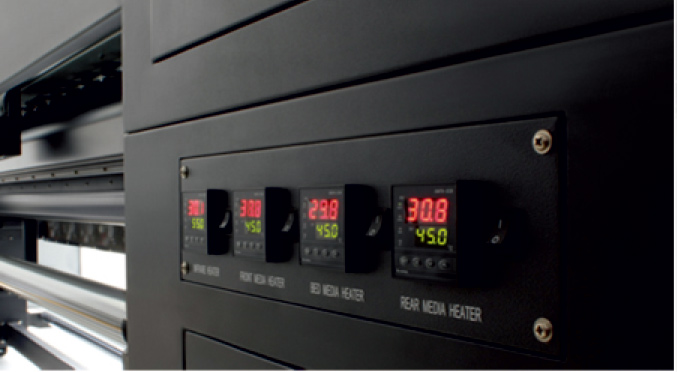

烘干裝置/Drying System
Infrared&Fan&Heather
打印寬度/Print Width
3200mm
打印分辨率/Print Resolution
2880 dpi - 1440 dpi
打印速度/Print Speed Up to
210㎡/h 260㎡/h
RIP軟件/RIP Software
Photo Print
硬件/Hardware
-
電源要求/Power Requirement
230V±10% 22A 50HZ
機器尺寸/Machine Size
950mm x4800mm x 1520mm
機器重量/Machine Weight
750kg.
功能特點/ Highlight Features:
1、PZG series Inkjet Printer uses konica latest KM512i/6988H high speed industrial printhead,not only good at color density,but also high speed quality production.
2、Designed for high-volume printing and rush jobs, The Maxima PZR-KV with 8 heads(dual 4 color),print speed up to 260 ㎡/h.

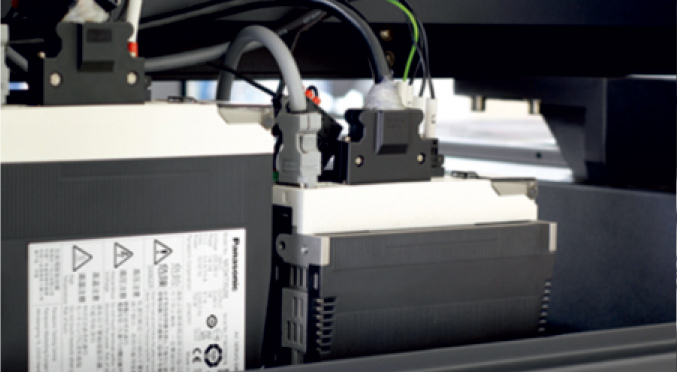

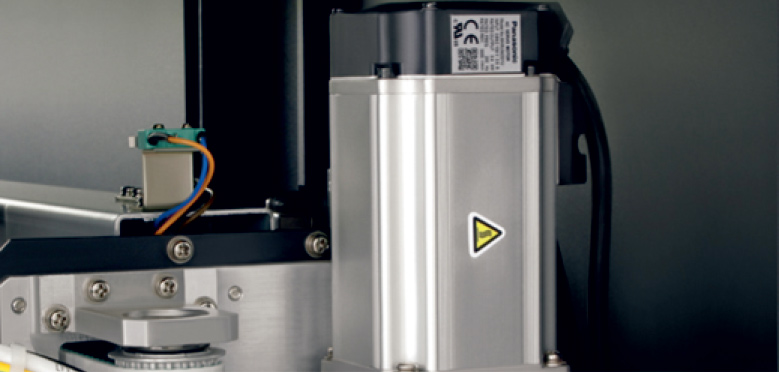

3、Adopt heavy structure,high strength crossbeam,imported high precision linear guider(double guider)and panasonic server moter overall improved stability and accuracy of carriage movement.

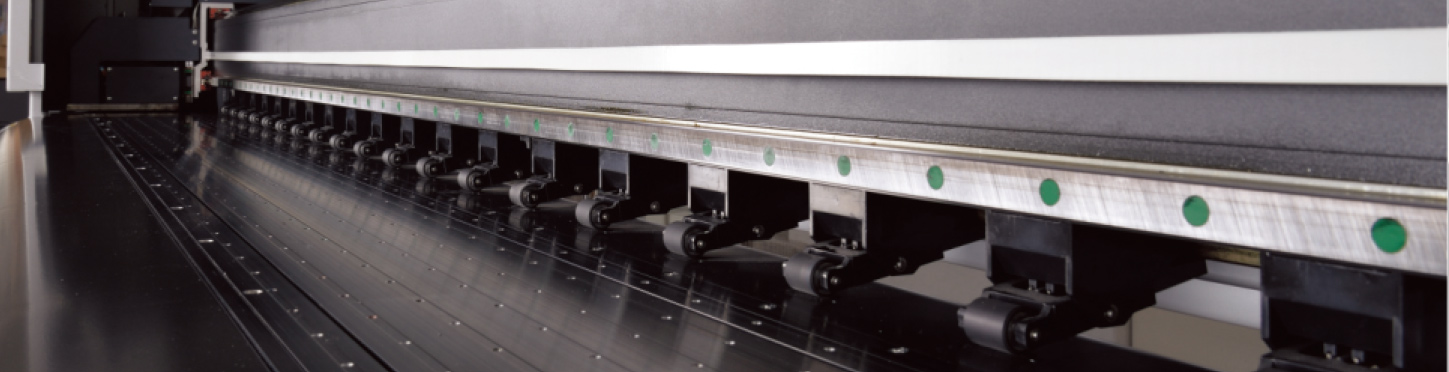

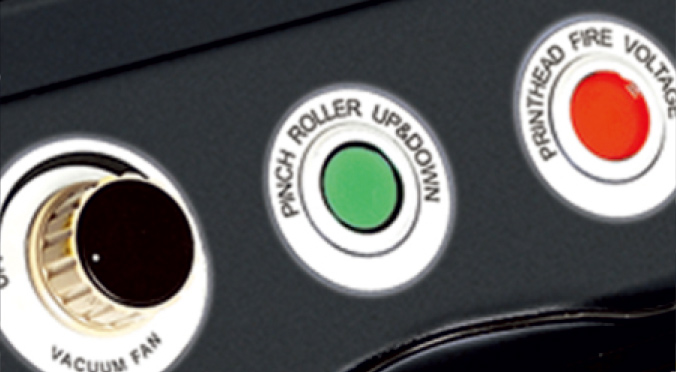

4、Brand new design of pinch roller auto lifting up and down system with pre and post button controllers, operation much more easy.
5, Independent research and develop LIYU new version of three-optical-fiber high speed data transmission system, guarantied machine quality, service worry free.

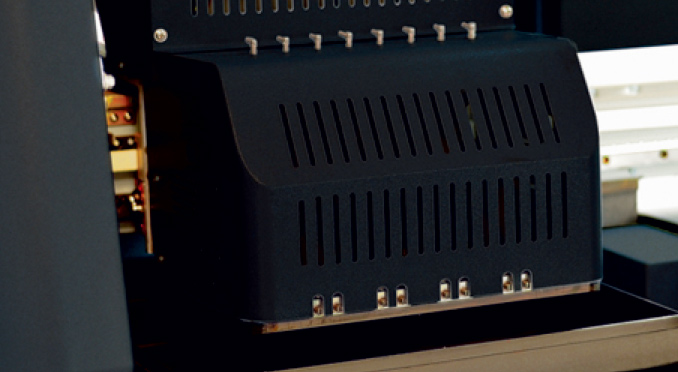

6, Adjustable carriage up & down system, available with different thickness of material, esay adjustment.
