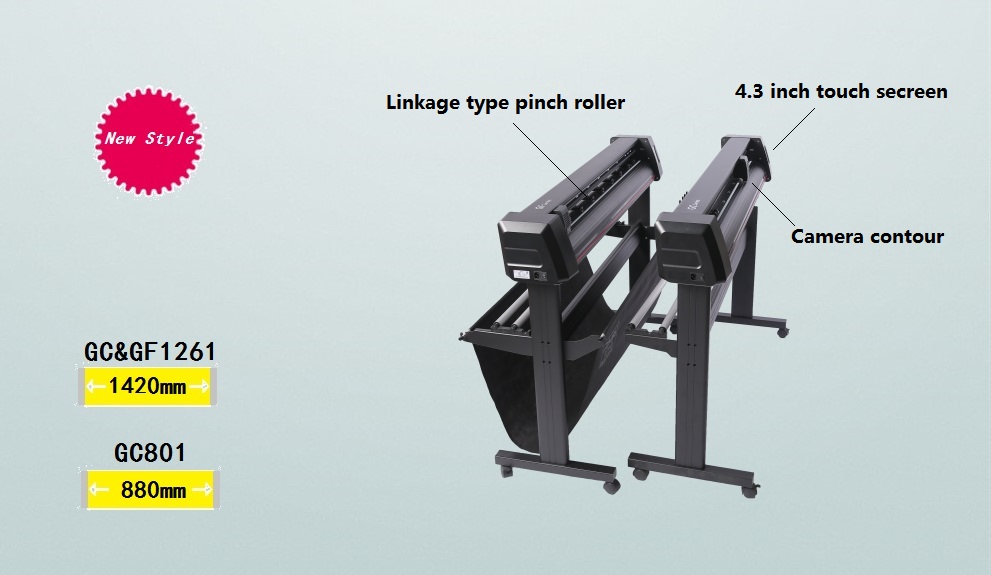

G series Cutting Plotter-Camera model
Technical parameter:
|
Model |
GC801 |
GC1261 |
GF1261 |
|
Max.Contour Cutting Width |
680mm/2.89ft |
1230mm/4.66ft |
1230mm/4.66ft |
|
Max.Cutting Width |
780mm/2.56ft |
1260mm/4.13ft |
1260mm/4.13ft |
|
Max.Media Width |
880mm/2.23ft |
1420mm/4.04ft |
1420mm/4.04ft |
|
Speed |
900mm/s |
1000mm/s |
|
|
Cutting Force |
900g |
1000g |
|
|
Touch Screen |
有 |
||
|
Memory |
1Gb |
||
|
Cutting Precision |
0.025mm/step |
||
|
Repeat Precision |
0.125mm |
0.1mm |
|
|
Power |
AC220V(110V)±15% ,<100W |
||
|
Language Format |
HP-GL,DM-PL |
||
|
Interface |
USB2.0 & U盤&WIFI |
||
|
Motor |
Stepper |
Servo |
|
|
Pinch Roller |
4sets |
5sets |
9sets |
The above data are subject to change without prior notice, the interpretation of the power of the company owned by Anhui.

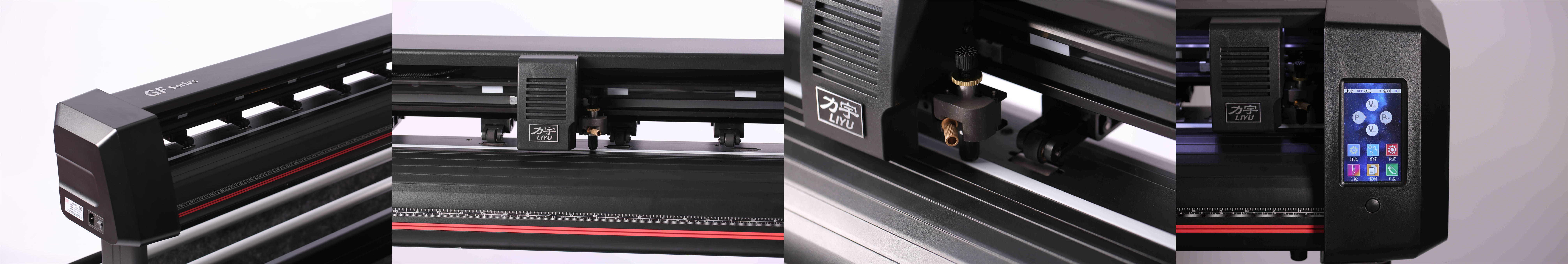

Highlight Features：
1）High-definition camera automatic contour cutting, accurate identify the marks of different colors and materials.
2）Multi-point alignment system, segmented contour cutting, automatic deviation correction.

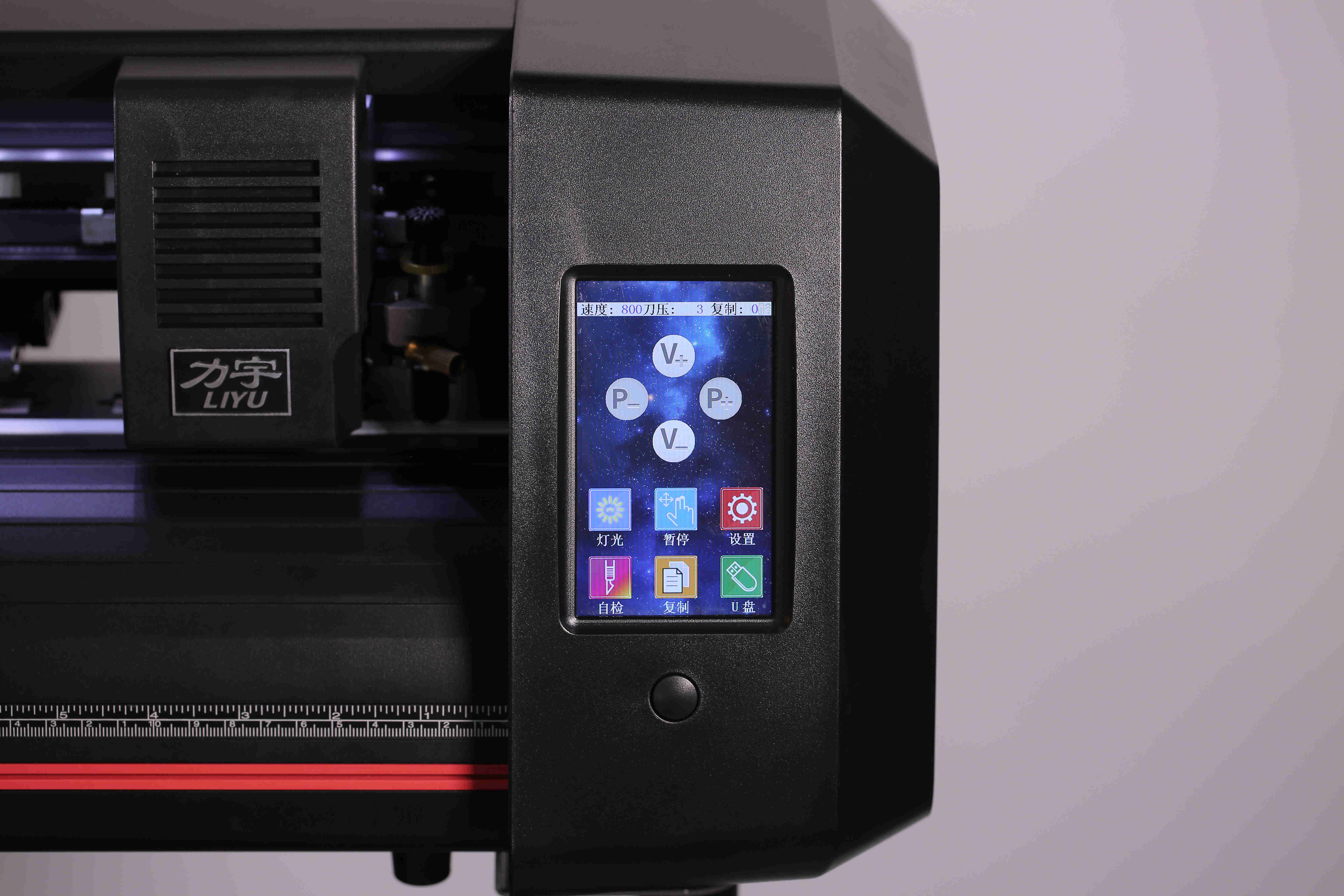

3）4.3 inch touch screen,high resolution,high definition.
4）High precision steel wheel, accurate transmission to prevent deviation.

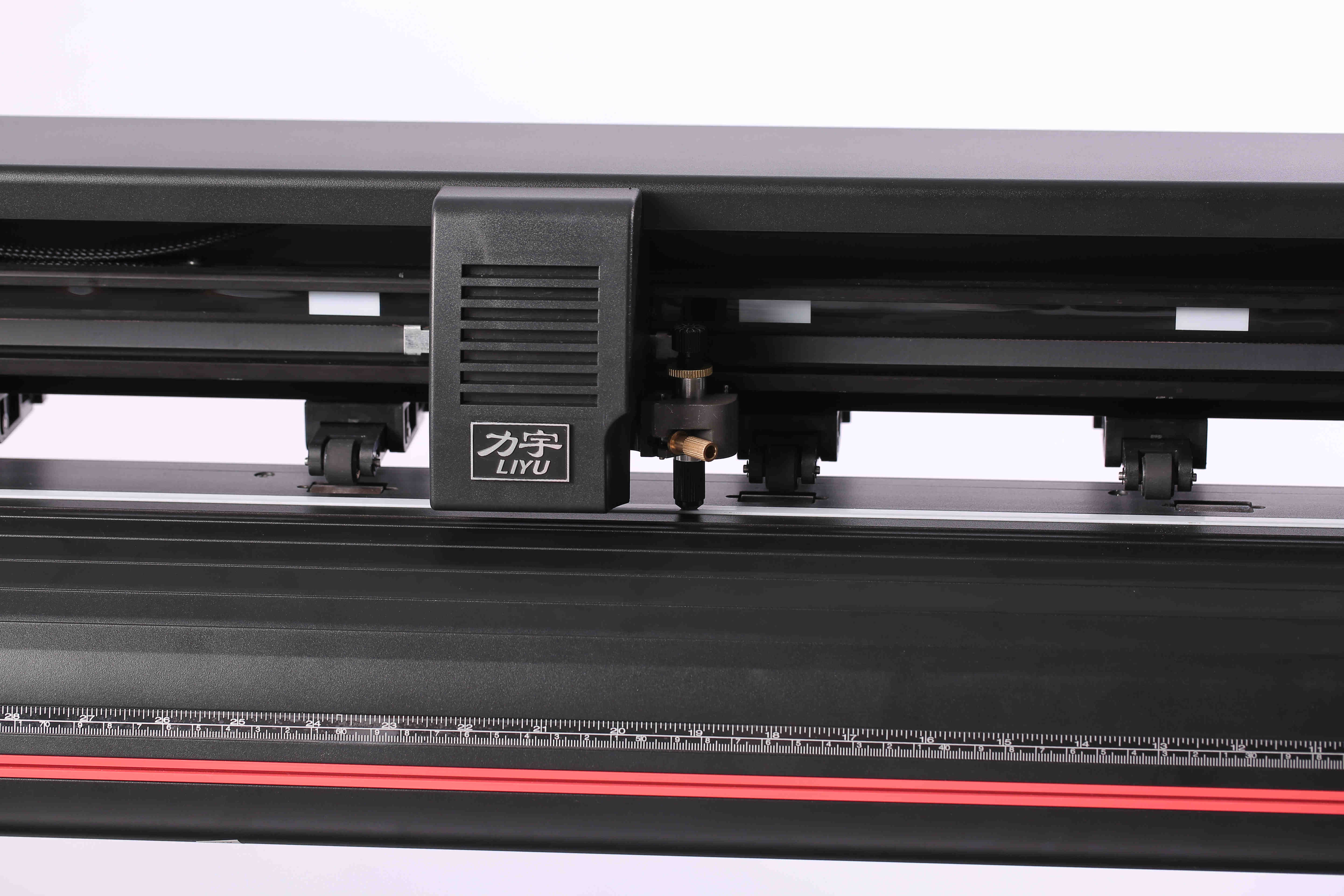

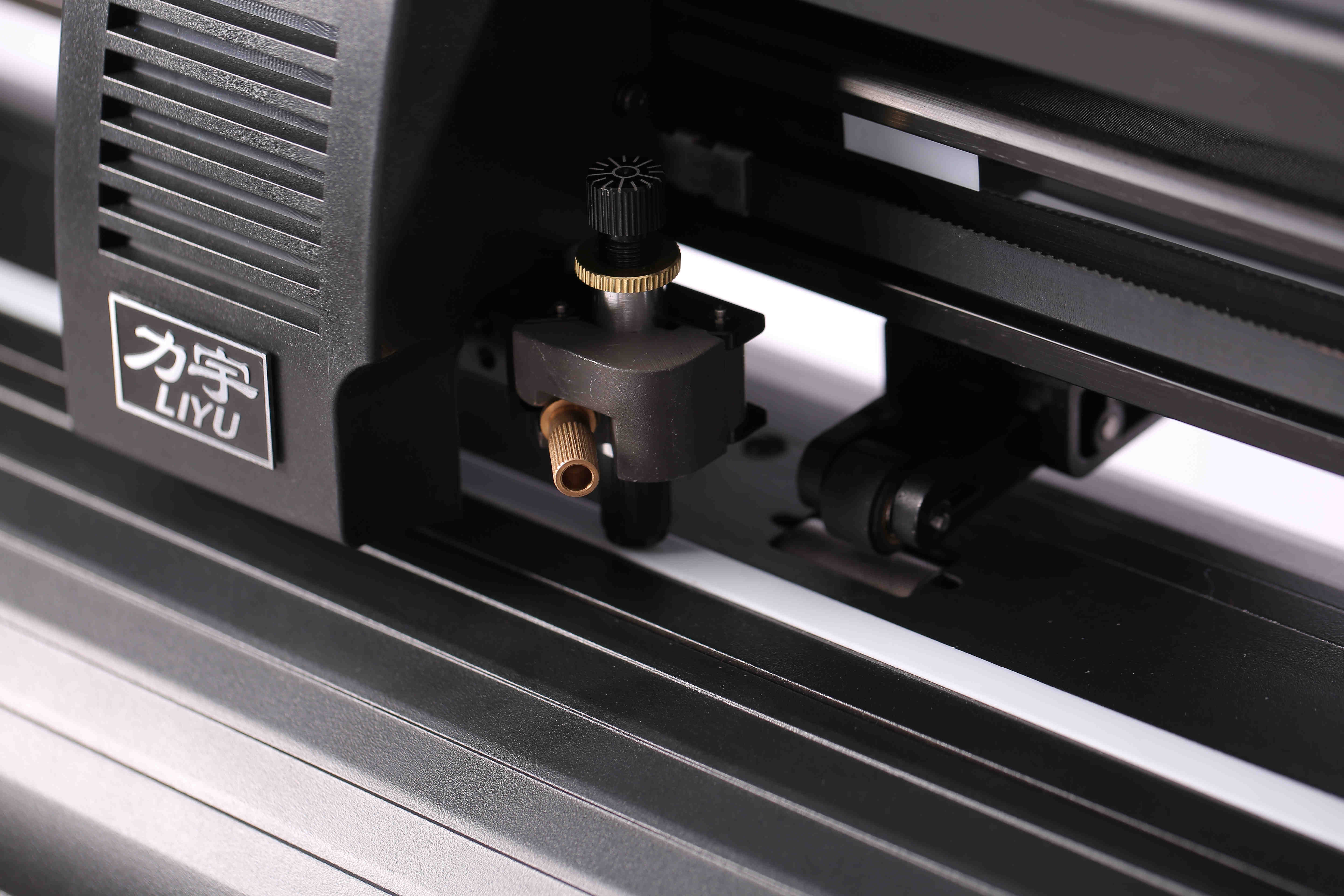

5）Metallic carriage, which can work continuously and smoothly for a long time and excellent heat dissipation.
6）1Gb super-large memory, data transmission in seconds,can be long time offline cutting, data can also be timely stored even in the case of power failure.
7）The system can identify USB drive automatically, fast and convenient.
8）Independent pinch roller design,move easily and smoothly.
9）Stepper driver system, reliable and stable performance.

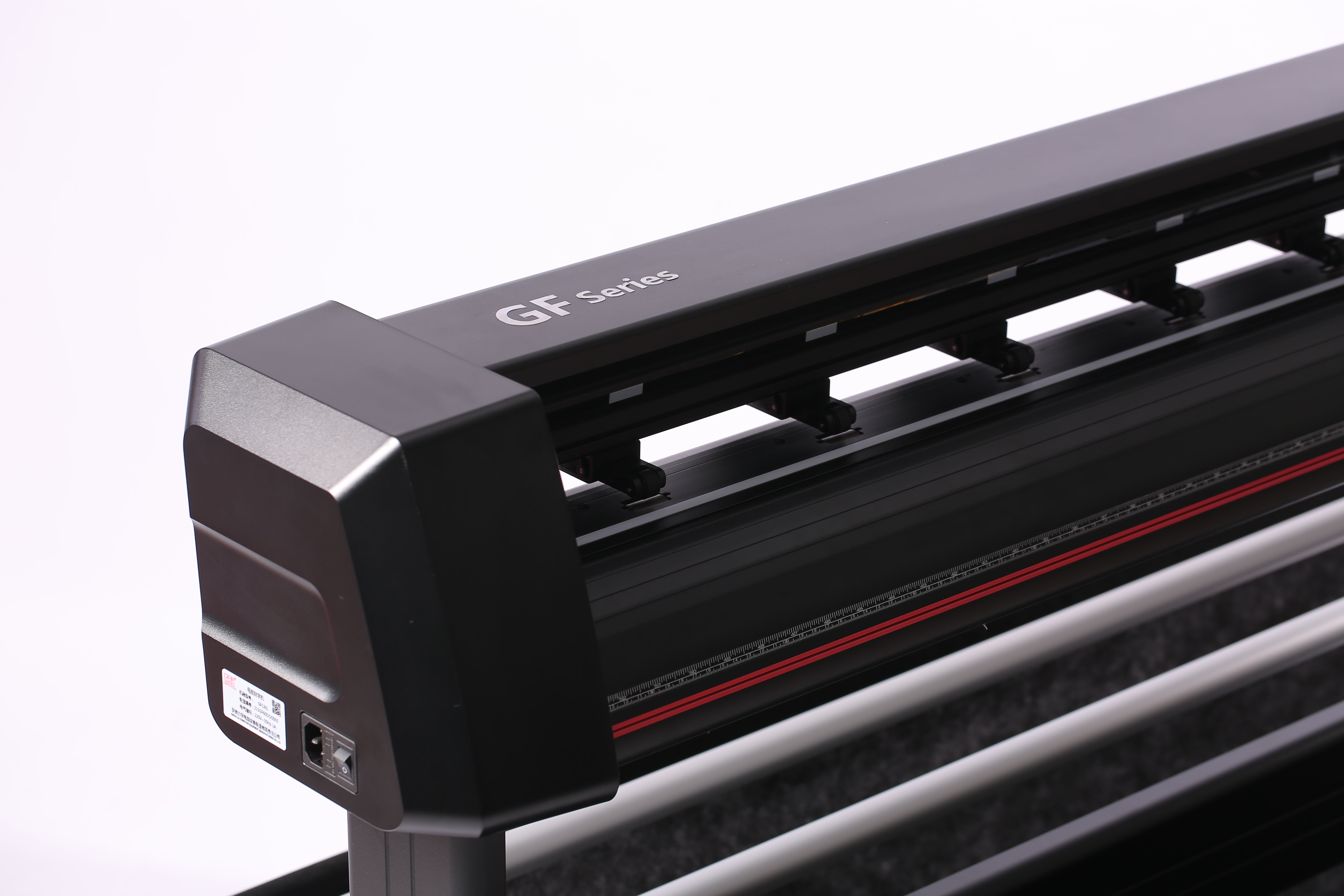

10）Red cutting groove design and high steel body integrated, Good-looking appearance.
